Embossed Carrier Tape Explained: Structure, Benefits & Applications

What Is Embossed Carrier Tape?

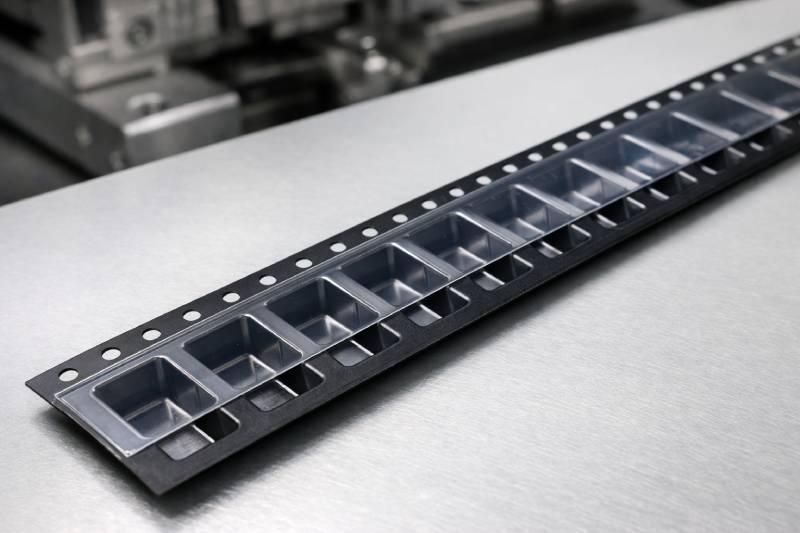

Embossed carrier tape is a thermoformed plastic packaging tape with precisely shaped pockets designed to securely hold electronic components during automated SMT pick-and-place processes.

Unlike punched carrier tape, which uses mechanical holes cut through flat material, embossed tape forms three-dimensional pockets by heating and molding the base film. This allows tighter dimensional control, better component retention, and improved protection compared with flat or punched tape designs.

In SMT production lines, embossed carrier tape is widely used because it supports high-speed feeding accuracy, minimizes component movement, and ensures stable alignment with feeders—making it a preferred choice for modern automated assembly.

For a broader overview, see What Is Carrier Tape.

How Is Embossed Carrier Tape Manufactured?

Embossed carrier tape is produced through a controlled thermoforming process designed to create consistent, repeatable pockets for automated component handling.

First, a plastic base film is heated and embossed, allowing the material to be formed into three-dimensional pocket shapes using precision tooling. This step defines the pocket depth, width, and geometry needed to match specific component dimensions.

Next, pocket shaping and trimming ensure uniform spacing, smooth edges, and accurate pitch so the tape feeds reliably through SMT equipment. After forming, the tape undergoes visual and dimensional inspection to verify pocket consistency and alignment before moving forward.

Finally, the finished embossed carrier tape is wound onto reels and prepared for integration into tape-and-reel packaging systems.

Embossed Carrier Tape vs Punched Carrier Tape

Embossed carrier tape and punched carrier tape differ primarily in how pockets are created and how precisely components are held during handling and transport.

Embossed carrier tape uses thermoformed pockets, offering higher pocket accuracy and depth control, which improves component stability and feeder alignment. This makes it suitable for delicate, fine-pitch, or irregularly shaped components that need secure positioning.

Punched carrier tape, by contrast, relies on mechanically punched cavities in flat material. While simpler in structure, it provides less dimensional flexibility and is typically used for standard components with lower protection requirements.

In terms of application, embossed tape is favored in high-speed SMT lines and advanced electronics, while punched tape remains a cost-effective option for simpler use cases.

Benefits of Embossed Carrier Tape in SMT Packaging

Embossed carrier tape offers several critical advantages that make it the preferred packaging solution for modern SMT environments.

Its high pocket accuracy ensures each component sits in a consistent position, reducing misfeeds and improving placement precision on automated lines. This dimensional stability is especially important for SMD embossed carrier tape used in high-density assemblies.

Embossed pockets also support high-speed pick-and-place compatibility, allowing smooth feeding and reliable indexing even at elevated production speeds. By securely holding components, the tape helps minimize movement, abrasion, and impact, significantly reducing the risk of component damage during transport and handling.

In addition, custom pocket capability allows SMT embossed carrier tape to be tailored for non-standard or sensitive components, offering greater flexibility than flat or punched alternatives while maintaining process reliability.

Common Materials for Embossed Carrier Tape

Embossed carrier tape can be manufactured from several thermoplastic materials, each selected to balance formability, strength, and application requirements.

Polycarbonate (PC) is valued for its high impact resistance and dimensional stability, making it suitable for heavier or more fragile components that benefit from strong pocket support. Polystyrene (PS) offers good formability and cost efficiency, commonly used for standard SMT components with consistent shapes.

Polyethylene terephthalate (PET) provides a balance between rigidity and environmental stability, often chosen where moisture resistance or cleaner material properties are needed. In applications sensitive to electrostatic discharge, conductive or antistatic material options are available to protect components throughout handling and assembly.

Where Is Embossed Carrier Tape Used?

Embossed carrier tape is widely used across electronics manufacturing sectors where precision feeding, component protection, and automation compatibility are critical.

SMT & SMD Components

In SMT production, embossed carrier tape is the standard packaging choice for resistors, capacitors, diodes, connectors, and other SMD components. The formed pockets keep components accurately positioned, ensuring stable feeding and consistent pickup by high-speed pick-and-place machines while reducing line stoppages.

Semiconductor & IC Packaging

For ICs, microchips, and other semiconductor devices, embossed carrier tape provides controlled pocket geometry and optional conductive properties to protect sensitive components. This makes it suitable for automated handling in backend semiconductor processes.

Automotive & High-Reliability Electronics

In automotive electronics and other high-reliability applications, embossed carrier tape is used to package components that must meet strict quality and traceability standards. The enhanced pocket stability helps maintain component integrity throughout extended logistics and demanding assembly environments.

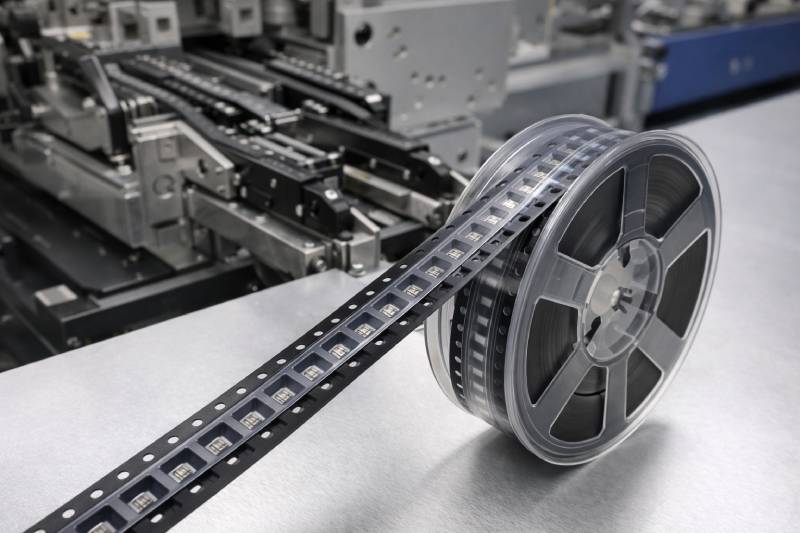

Embossed Carrier Tape in Tape and Reel Packaging

Embossed carrier tape plays a core structural role within a complete tape-and-reel packaging system, serving as the primary carrier that positions and protects components throughout handling and assembly.

Within the system, embossed pockets hold components in fixed orientation, while cover tape seals the pockets to prevent movement, contamination, or loss during transport. The combined structure ensures smooth feeding and precise indexing when the tape is loaded into SMT feeders.

The embossed carrier tape and cover tape are then wound onto reels, forming a compact, standardized format compatible with automated storage, shipping, and production lines. Proper coordination between the embossed tape, cover tape adhesion, and reel specifications is essential for stable peeling forces and uninterrupted operation.

Custom Embossed Carrier Tape Solutions

Standard embossed carrier tape dimensions are designed to fit common components, but they do not always meet the requirements of non-standard, sensitive, or high-value parts. In such cases, custom embossed carrier tape becomes essential.

Customization typically addresses challenges such as unique component shapes, tighter tolerance needs, increased pocket depth, or enhanced retention during transport and high-speed feeding. It can also involve material selection, antistatic or conductive properties, and optimized pocket geometry to improve pickup reliability.

Manufacturers most often requiring customization include semiconductor suppliers, automotive electronics producers, and OEMs developing new or proprietary components. For these users, custom solutions reduce assembly risk and improve long-term process stability.

Summary

Embossed carrier tape is a precision thermoformed packaging solution designed to support reliable handling, protection, and automated placement of electronic components in SMT environments.

By offering accurate pocket geometry, material flexibility, and compatibility with high-speed pick-and-place systems, it plays a critical role across SMT, semiconductor, and high-reliability electronics applications. When standard formats are not sufficient, customized embossed carrier tape solutions provide the control and consistency required for advanced components.

To explore available options, view embossed carrier tape products, or deepen your understanding with the complete Carrier Tape Guide.
