Electronic component carrier tape:

               The "precise transporter" in the electronic industry

In the production chain of electronic devices such as mobile phones, computers, and smart home appliances, there is a role that is often overlooked but is extremely crucial - electronic component carrier tape. It is like a "special compartment" tailored for tiny electronic components, silently undertaking the responsibilities of protection, carrying, and precise transportation. It is the core auxiliary component for achieving automated assembly of electronic components. If the electronic production line is compared to a high-speed "logistics system", the carrier tape is the key carrier that ensures the "goods" (electronic components) arrive at their destinations safely and efficiently.

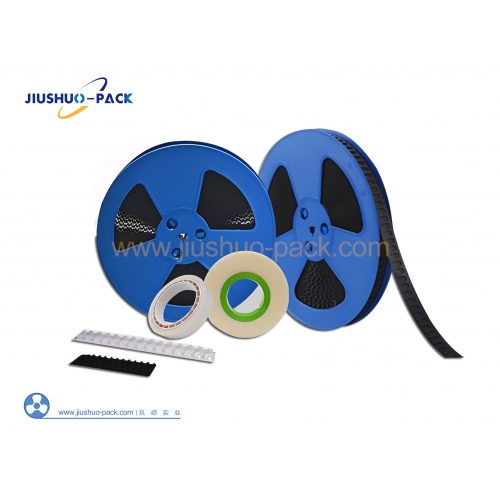

What is meant by electronic component carrier tape, in simple terms, is a tape-like product with a specific groove structure. The dimensions and shapes of these grooves are precisely matched to the specifications of the components being carried. The carrier tape is usually used in combination with a cover tape, encapsulating resistors, capacitors, connectors, etc. in the grooves. It can prevent the components from being damaged or contaminated during transportation and processing, and can achieve precise grasping by automated equipment through the positioning holes on the carrier tape, significantly improving production efficiency.

As the types of electronic components have become more diverse, carrier tapes have also formed numerous specialized categories. Among them, carrier tapes suitable for capacitors, resistors, transformers, and connectors are the most commonly used.

Capacitor carrier tapes are one of the categories with the largest usage. Capacitors are small in size but have high insulation requirements. Especially for components like ceramic capacitors that are susceptible to static electricity, their carrier tapes usually use anti-static plastic materials. The inner walls of the grooves are smooth and the size error is controlled within 0.01 millimeters, which can prevent the capacitors from being worn during transportation and prevent electrostatic breakdown of the components. For the flat structure of surface-mount capacitors, the carrier tape is designed with shallow grooves that fit tightly together to ensure no displacement during high-speed transmission.

Resistor carrier tapes are characterized by "dense and efficient". Resistors are the most basic components in electronic circuits and have a huge demand, so the grooves of resistor carrier tapes are more densely arranged, capable of carrying dozens or even hundreds of resistors per unit length. Considering that resistors are mostly cylindrical or sheet-shaped, the grooves of the carrier tape will adopt arc or flat designs, combined with breathable cover tapes, to ensure precise grasping and avoid the impact of humid environments on the performance of resistors. For power resistors and other larger-sized models, the carrier tape will increase the depth and thickness of the grooves to improve the stability of the load.

Transformer carrier tapes differ significantly from the previous two types and focus more on "load-bearing and protection". Although transformers are passive components, they have relatively large volume and weight, and have a pin structure. Their carrier tapes usually use thick plastic materials, and the internal grooves are designed with positioning protrusions to fix the transformer body, while leaving space for pin deflection to prevent pin bending and deformation. Some large-power transformer carrier tapes may also adopt segmented structures, each segment carrying 1-2 components, to ensure balanced force during automated assembly.

Connector carrier tapes are one of the categories with the highest precision requirements. Connectors usually have numerous fine pins, and the spacing and verticality of the pins directly affect the circuit connection effect. Therefore, the grooves of the carrier tape are precisely cut according to the pin distribution of the connectors, and some high-end connector carrier tapes may use transparent materials to facilitate visual recognition by automated equipment for confirming the position of the components. In addition, the spacing of the positioning holes of the connector carrier tape is more strictly controlled to ensure precise alignment with the assembly station each time.

These specialized carrier tapes may seem simple, but they directly relate to the production quality and efficiency of electronic devices. From the miniature capacitors on the motherboard of mobile phones to the high-power transformers in electric vehicles, the safe "entry" of every electronic component is inseparable from the "precise transporter" role of the carrier tape. As the electronic industry moves towards miniaturization and intelligence, carrier tapes are constantly upgrading, moving towards more precise, more environmentally friendly, and more suitable for complex components, continuously supporting the development of the electronic industry.

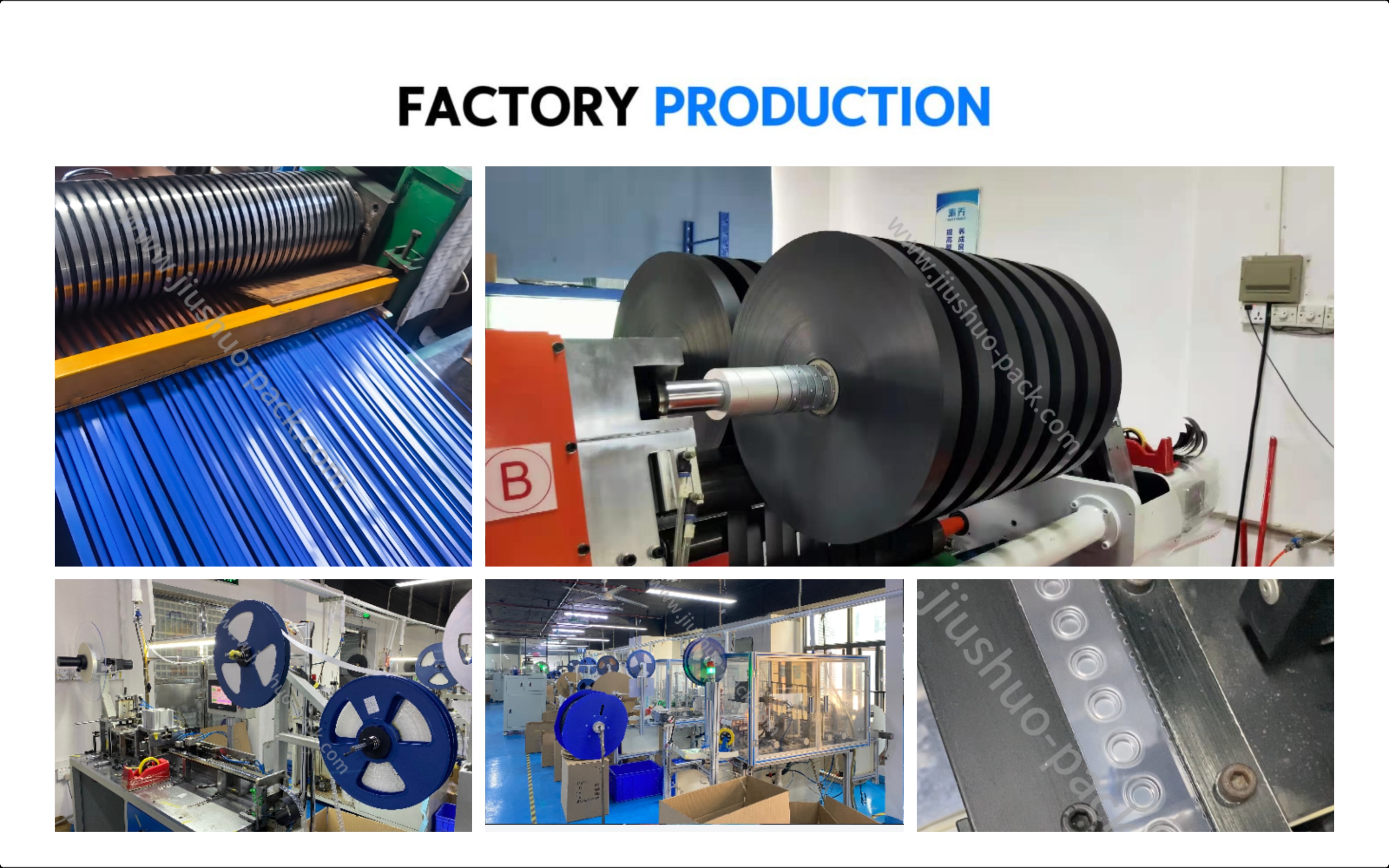

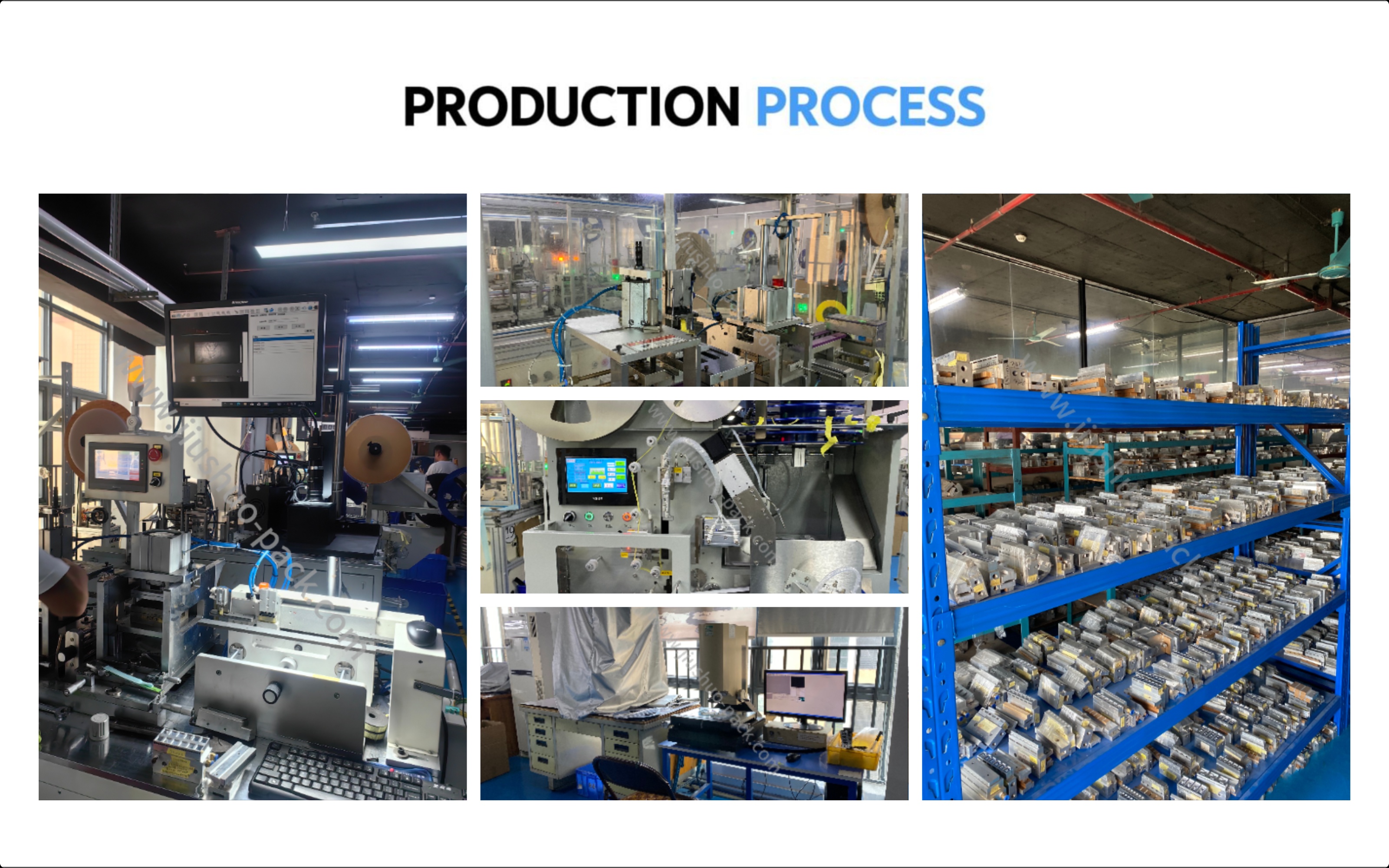

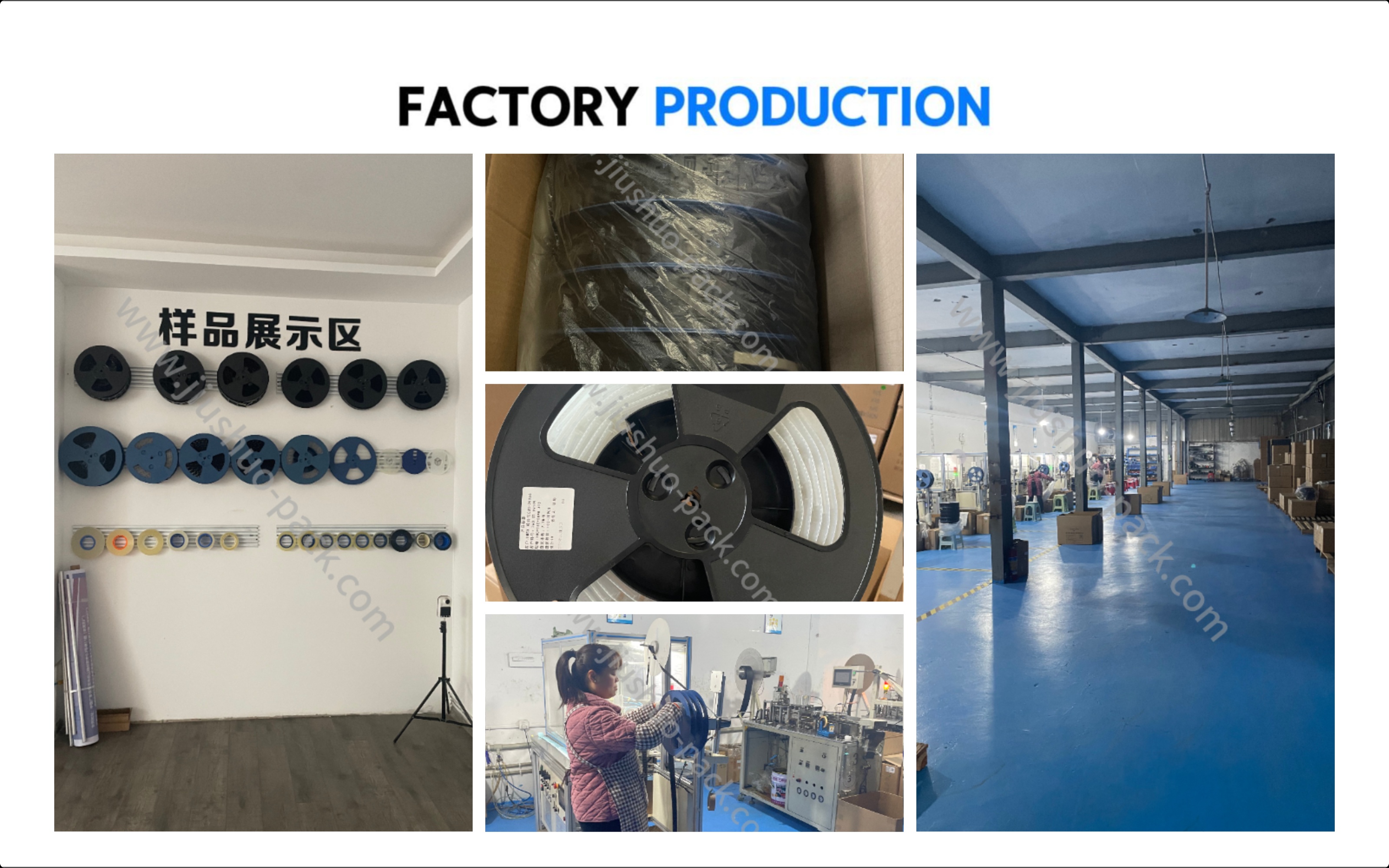

On the vast track of electronic component carrier tapes , Jiushuo has become the preferred choice for numerous enterprises thanks to its rich industry experience and exquisite manufacturing capabilities. As mentioned earlier, we have mature production plans and successful cases for capacitor carriers, resistor carriers, transformer carriers, and connector carriers. Moreover, for various electronic components such as filters, chips, USB interfaces, Jiusuo can also customize dedicated carrier products. Whether it is for anti-static, high precision, or special structural requirements, they can be precisely matched. Choosing Jiusuo means choosing stable quality and efficient production guarantees, ensuring that every electronic component can safely "travel", and helping your electronic industry journey to be steady and far-reaching.
